INNOVATORS IN INDUSTRIAL X-RAY & MANUFACTURING PRODUCTS
VAREX HP HIGH POWERED X-RAY TUBES
The HP series of high powered x-ray tubes is designed to meet the demanding requirements for industrial digital imaging. This enables HP output of higher wattages at the same focal spot size as standard powered x-ray tube.
See below for more detail and a Link to pdf Specifications
Varex HPX-160/11 Tube Specification (1800WATT)
160kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 0.4mm
Varex HPX1-60/20 Tube Specification (1000WATT)
160kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 1.0mm
Varex HPX-225/11 Tube Specification (1800WATT)
225kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 0.4mm
Varex HPX-225/20 Tube Specification (1000WATT)
225kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 1.0mm
Varex HPX-320/11 Tube Specification (1800WATT) (270° Horn)
320kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 0.4mm
Varex HPX-320/11 Tube Specification (1800WATT) (140° Horn)
320kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 0.4mm

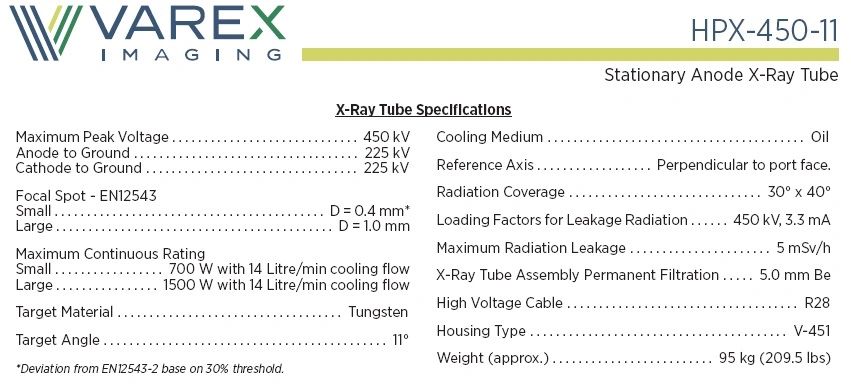

Varex HPX-450/11 Tube Specification (1500WATT)
450kV
LARGE SPOT EN12543 - 1.0mm
SMALL SPOT EN12543 - 0.4mm
